5:1-80:1 Worm Reducer NMRV030 11mm Input Shaft RV030 Worm Gearbox for NEMA 23 Stepper Motor or 57mm DC Motor

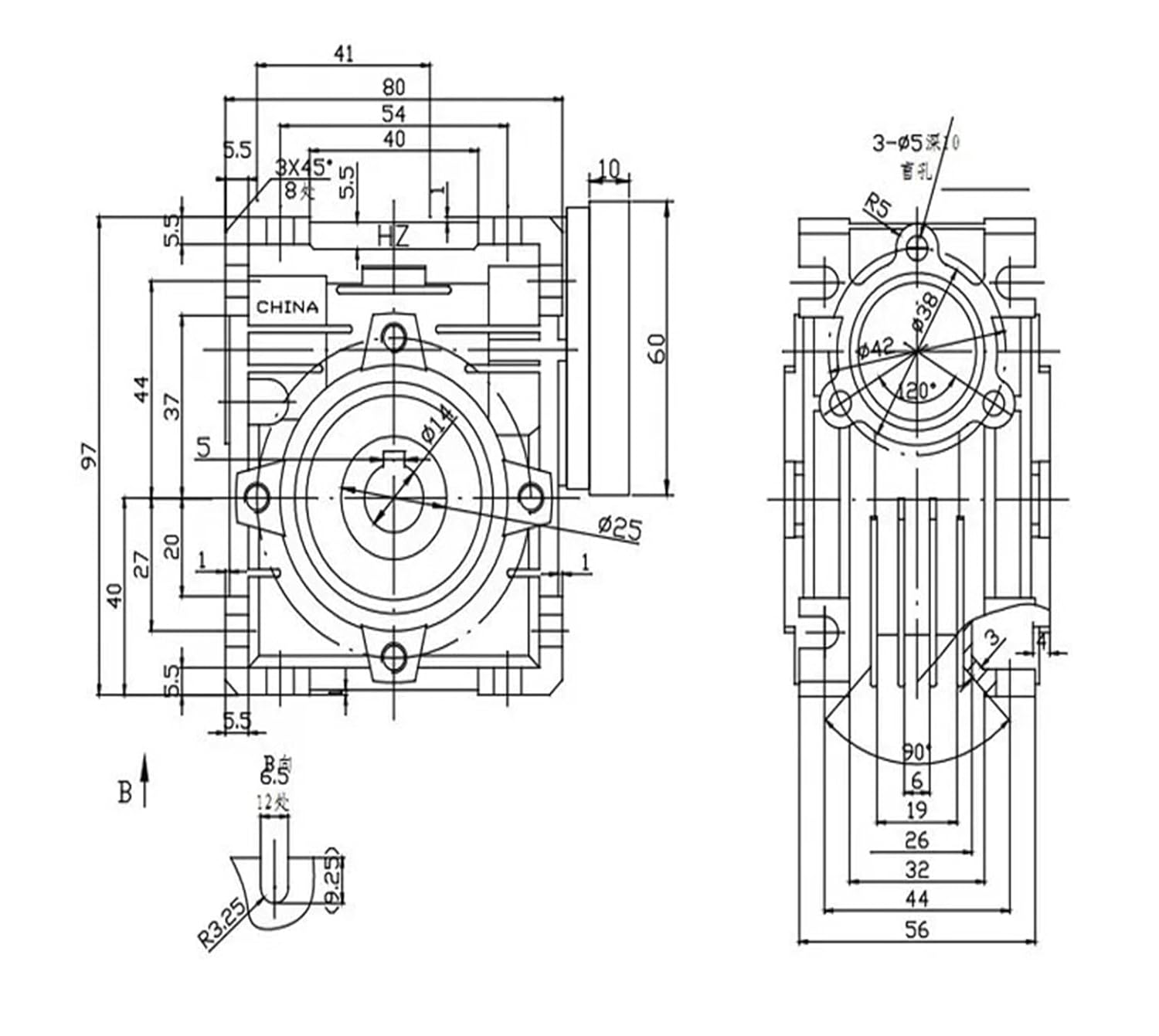

5:1-80:1 Worm Reducer NMRV030 11mm Input Shaft RV030 Worm Gearbox for NEMA 23 stepper motor or 57mm DC motor1pc RV30 worm reducerNote:wehavegear ratio 5:1,7.5:1, 10:1, 15:1, 20:1, 25:1, 30:1,40:1, 50:1, 60:1, 80:1 for customers.Worm reducer by our common camera without PS:Material for worm reducergearbox:Worm wheel: Nodular cast iron and bronzeWorm shaft: 20Cr steel.The hardness of surface is 56-62HRC with carbonized layer 0.3-0.5mmHousing: aluminum with oven paintingColor: silverFeature ofworm reducer gearbox:1) High quality aluminum alloy die cast gearbox2) High accuracy worm gear and worm shaft3) Less noise and lower temperature increase4) Easy mounting and linking, high efficiencyThe dimension of the worm reducer RV30:We also have worm reducerparts such asoutput shft, torque arm and output flange, if any need, Please click the link below to order.14mm Single Output Shaft or Double Shaft Worm Output NMRV030 ,If you need to click the link below to buy:If you need torque arm, please click the link below to order!Torque : 2.6N.m-24 N.mModel Number : RV030Commutation : BrushlessEfficiency : IE 1Output Power : 0.06KW-0.18 kwOutput speed : Varies with changes in speed ratioInput speed : about 1500rpmSpeed ratio : 5:1,7.5:1,10:1,15:1,20:1,25:1,30:1,40:1,50:1,60:1,80:1for customers.Output hole diameter : 14mm
