Linear Bearing LM12UU LM13UU LM16UU LM20UU Linear Motion Bearings ABEC-5 Linear Motion Bearings LMUU Linear Ball Bearings(LM12UU A5 4PCS)
4.2 (16 items)
Limited Time SaleUS$32.45 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 210969132 | Release Date | 2026/04/04 | List Price | US$21.63 | Model Number | 210969132 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

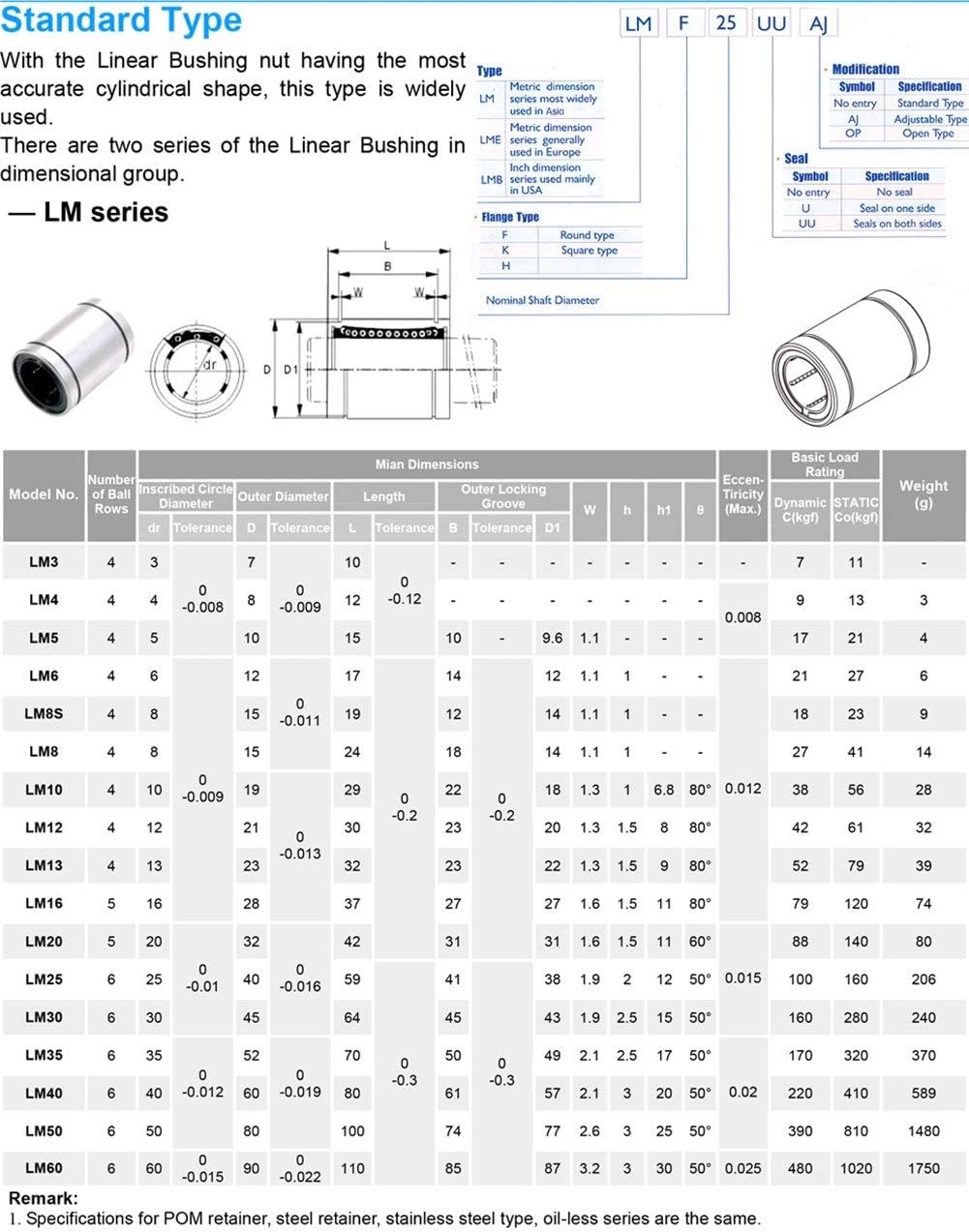

ball bearingDetailsModel: LM12UUBall circuit: 4Inscribed circle Diameter: 12 mmOut Diameter: 21 mmLength: 30 mmDynamic Cr: 42 kgfStatic Cor: 61 kgfWeight: 32 gGrade: ABEC-5Quantity: 1 Lot = 4 PCSModel: LM13UUBall circuit: 4Inscribed circle Diameter: 13 mmOut Diameter: 23 mmLength: 32 mmDynamic Cr: 52 kgfStatic Cor: 79 kgfWeight: 39 gGrade: ABEC-5Quantity: 1 Lot = 4 PCSModel: LM16UU
- ball bearing
- Introduction:
- Linear Bushing model LM is a linear motion system used in combination with a cylindrical LM shaft to perform infinite straight motion.
- The balls in the loaded area of the nut are in point contact with the LM shaft.
- This allows straight motion with minimal friction resistance and achieves highly accurate and smooth motion despite the small permissible load.
- The nut uses high-carbon chromium bearing steel and its outer and inner surfaces are ground after being heat-treated.
| Brand Name | KETDDYEG |
|---|---|
| Unit Count | 1.0 Count |
| Item Weight | 350 Grams |
| Manufacturer | KETDDYEG |
