Repair Outdoor Stair Post Railings-8" Repair Base Mount, No Welding- Metal handrail Posts for Broken Out of Concrete-Brackets Slip in Rails existing 1" Square Tube -3" Plate-Black Paint-Anchor Bolts
4.2 (117 items)
Limited Time SaleUntil the end
10
10
53
US$28.17 cheaper than the new price!!
Free shipping for purchases over $99 ( Details )
Free cash-on-delivery fees for purchases over $99
Free cash-on-delivery fees for purchases over $99
See all stores
Please note that the sales price and tax displayed may differ between online and in-store. Also, the product may be out of stock in-store.
Used US$18.78
Product details
| Management number | 210116161 | Release Date | 2026/04/02 | List Price | US$18.78 | Model Number | 210116161 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- IMPORTANT: Please measure your iron posts carefully before purchasing your repair mount. Your railing must be removable for these handrail brackets to work. Your outdoor railing 1” posts must be hollow to use this mount. What’s included is a base with a 1” flange tube with support rod to slide inside the existing 1” railing post and 4 anchor bolts. Support bar is welded in place and does not come out. Size reminder to measure your square post’s outer dimension- 1” x 1” to ensure compatibility with the flange tubes 1” x 1” outer dimensions.
- COST-EFFECTIVE: Offers an economic alternative to complete railing replacement. These steel handrail brackets are perfect for those looking to improve their home's safety and functionality, maintaining structural integrity. No need to spend thousands to replace the existing rails. With these post repair mounts, you can rest assured that your railings will remain sturdy and safe for years to come. Custom orders welcome!

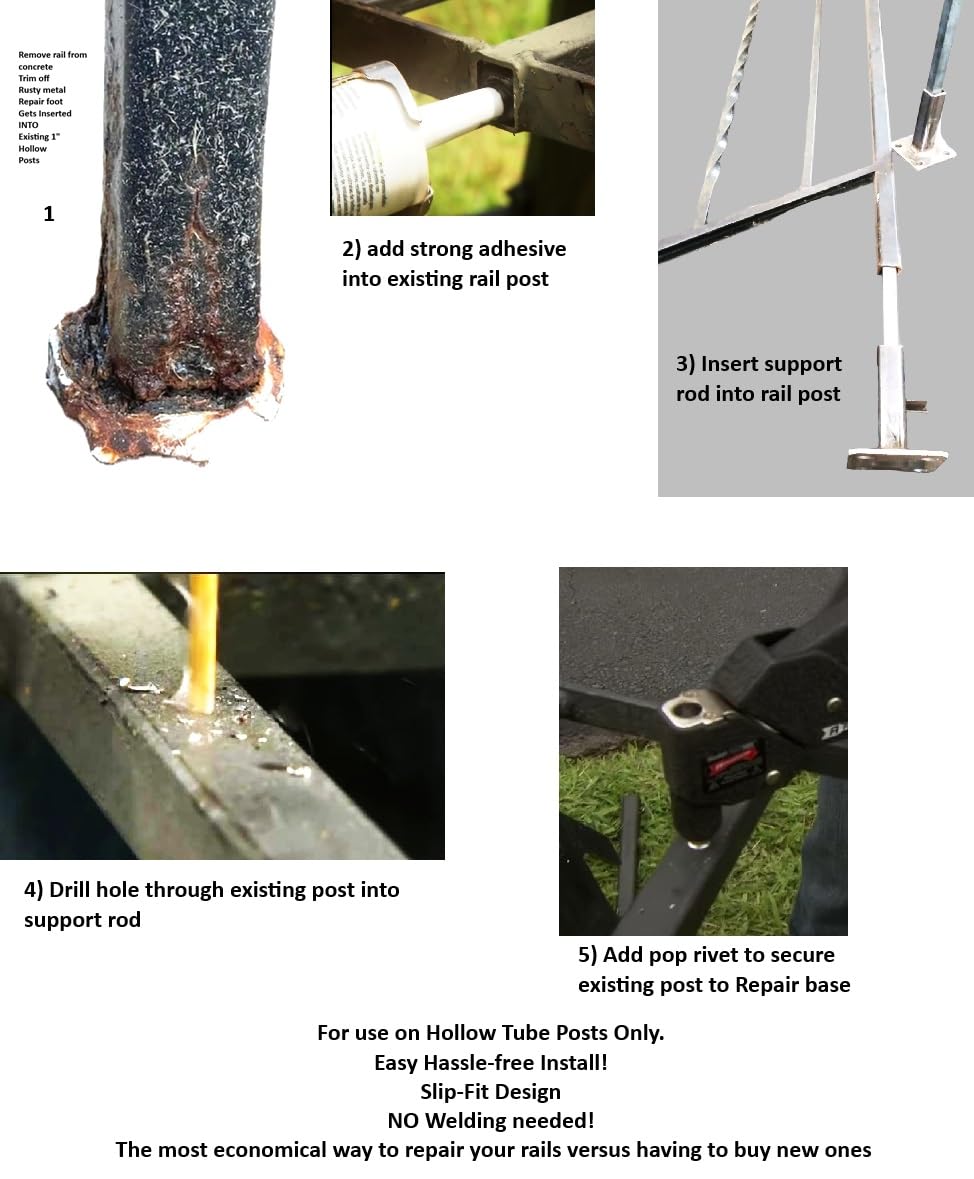

- EASY INSTALLATION: No welding required! The metal brackets support rod slips inside the existing rails 1” x 1" square outer dimension posts for a seamless repair. Works on your 1" x 1” outer dimension square legs-posts-banisters. Hollow railing posts only. Cut off the bad part, fill existing 1” post with a strong bonding agent. Slide support rod into existing post and add a pop rivet to secure. Bottom tube of new bracket is 1” OD and matches up to your existing 1” tube posts. Bolt down base plate. * Recommend a 5/16” masonry bit for drilling holes.
- MOUNTING TYPE: Base plate is 3" x 3" with (4) 3/8" holes and is designed for easy Hassle-free installation, providing a secure stable post mount for your outdoor railings, decks, fencing, handrails and guard rails. Base plate also covers up existing holes in the concrete. Anchor bolts provided 5/16” x 1 ½”

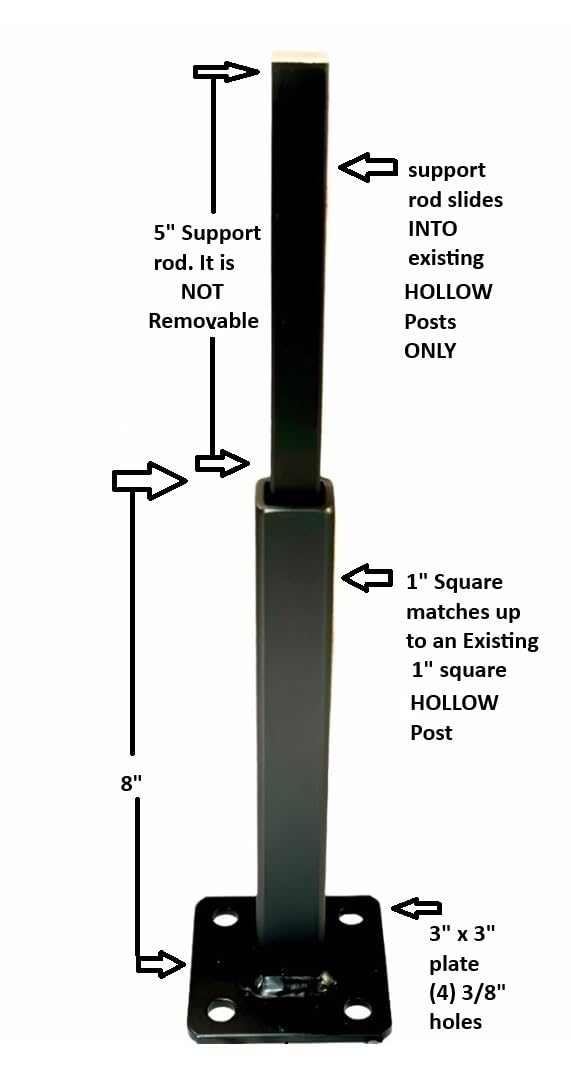

- INCLUDES: 1" OD square flange tube x 8 " high repair length bracket with support rod that is welded in place.Does not come out. Support rod is above the flange tube 4 inches and includes 4 mounting hardware bolts. Primed and painted Black ready to install upon arrival!
- Reminder: These repair mounts are for 1” x 1” outer dimension post. Hollow square tube metal posts only. They will not fit a 1 ¼” post over them. They will not fit a 1 ½” post inside them and a 1 ½” post will not fit over this mount. Use of these railing repair brackets require the handrail to be out of the concrete to be installed properly.
- WHAT SIZE TO ORDER: The best thing to do is measure the post leg right below the bottom horizontal bar of the railing to the cement. Normally anywhere from 3” – 8” depending on the post placement on the steps. What you are cutting off is the measurement of the new repair bracket you will need to order. This will keep your railing leveled. Completely cut the post off right below that horizontal bar. Install new post mount.
- PATENTED DESIGN: This innovative handrail bracket solution is protected by a pending patent. Manufacturer: Made in the USA by Anvil Welding & Fabrication LLC, a reputable and experienced manufacturer in Pennsylvania, you can trust in the quality and craftsmanship of these iron products. Welded by certified welders and blacksmiths. Trademark Anvil, Copyright registered
| UPC | 850069492137 |
|---|---|
| Color | Black |
| Material | Metal, iron, steel |
| Item Form | SQUARE, mount |
| Brand Name | ANVIL |
| Item Shape | Square |
| Unit Count | 1.0 Count |
| Item Weight | 2.13 Pounds |
| Part Number | AN-VIL-858PB |
| Grade Rating | A36 |
| Manufacturer | Anvil Welding & Fabrication LLC |
| Model Number | ANVIL58375-12 |
| Item Diameter | 1 Inches |
| Item Thickness | 1/8 Inches |
| Item Dimensions | 13 x 1 x 1 inches |
| Number of Items | 1 |
| Specification Met | Pat Pending, Welded Construction |

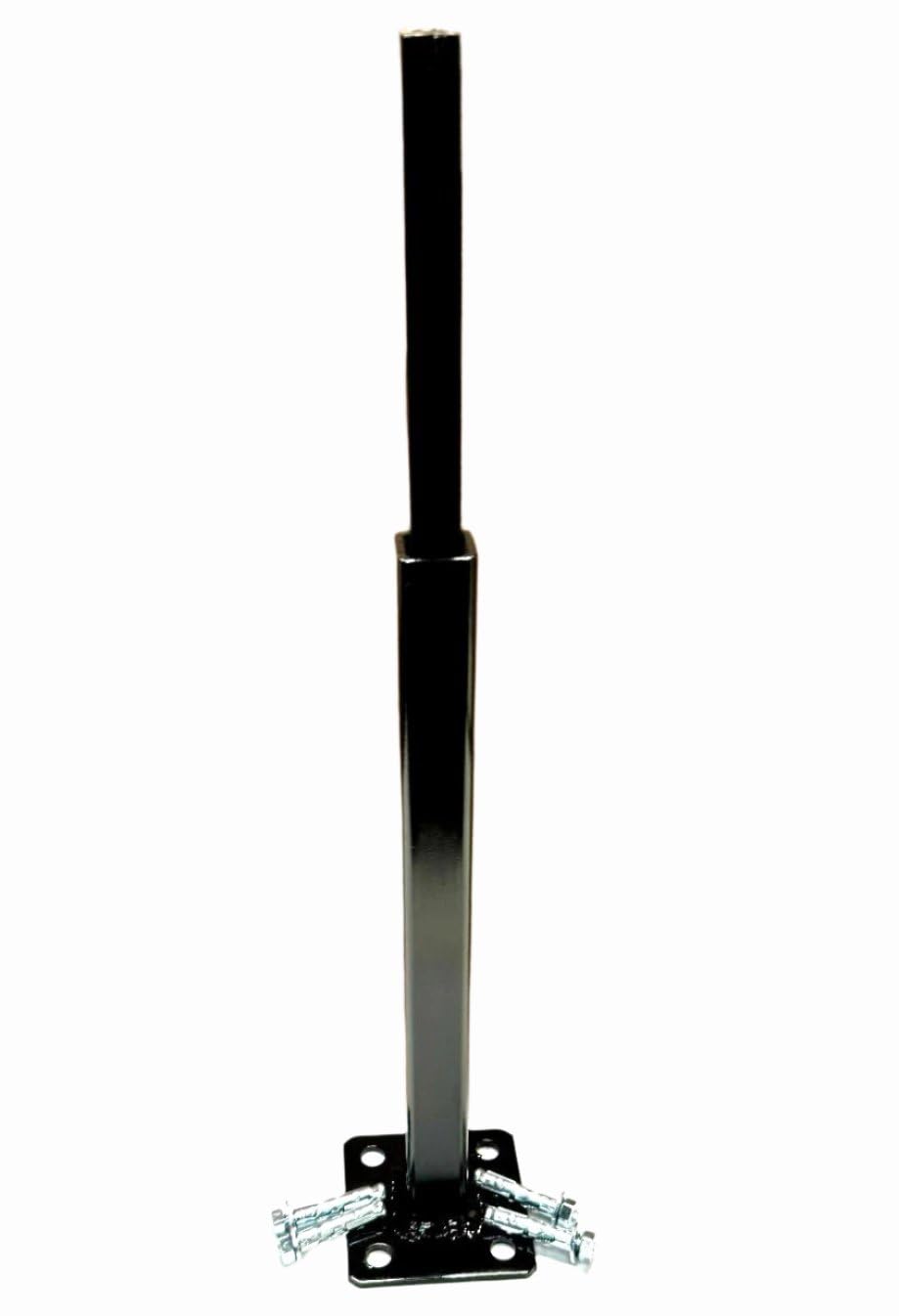

| Included Components | 1) 8" Repair bracket for 1" hollow rail posts, 4 anchor bolts, Instructions |
